Concentric Steel Armored Cable Steel Taping Machine

Place of Origin : Wuxi

Brand Name : HNT

Certification : ISO9001:2008, CE, High-tech enterprise

MOQ : 1 set

Price : negotiable

Packaging Details : according to customer's requirements

Delivery Time : 30-120 days

Payment Terms : T/T, L/C

Shaft diameter : 670mm

Strip Material : Steel, Copper

Shaft diameter mm 670 Shaft width mm 300 Strip Material Steel, Copper Strip width : Max. 40mm

Taping Tension : 2.5-15daN

Motor : 7.5KW

Loading Weight : 600kg

Contact Now

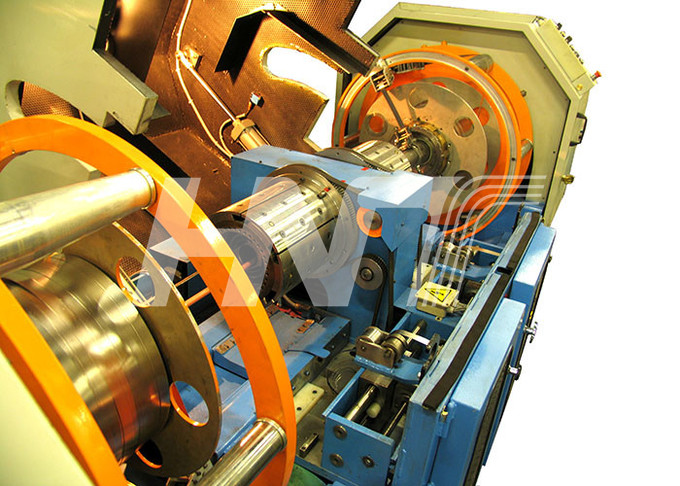

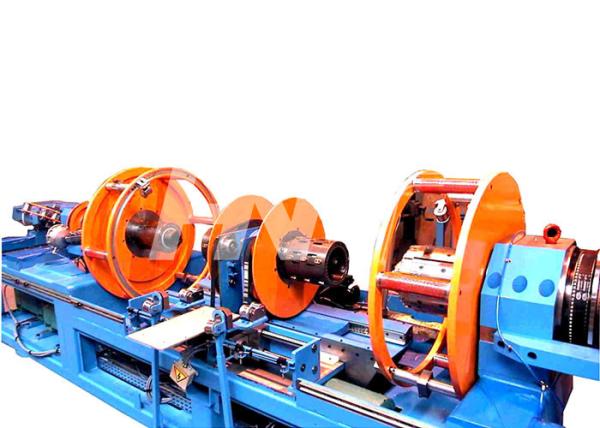

Concentric Steel Taping machine

Փ40 steel taping machine is a high-efficiency steel strip armoring equipment; this machine has large steel strip storage, resulting in single drum continous armoring without changing drum. This machine also has a rewind function, it supports rewinding while the armoring process is operating; Reloading the strip is easy and fast, resulting in high efficiency.

The armor head is driven independently and the angle of the armor is easy to adjust.

The electrical synchronous control consists of touch screen, PLC and AC servo control system. The touch screen displays various parameters and also can be stetted. The PLC participates in the armor speed and pitch control. The encoder feedback information to the PLC in real time, PLC control armor Speed and pitch accuracy; ensure that the pitch is within the set range.

Up to 1000 rpm depending on the product

Technical Parameters:

Shaft diameter mm	670
Shaft width mm	300
Strip Material	Steel, Copper
Strip width mm	10 to 40
Strip thickness mm	Strip thickness0.25 -0.40 (Steel strip)0.10 -0.50 (Copper Strip)
Maximum weight of the bobbin kg	600kg
Drive Motor kw	22 kw
Rotating speed rpm	600
Pitch	Infinitely adjustable

Concentric Steel Armored Cable Steel Taping Machine
