PO32 Motorized Payoff Machine For VCV Production Line

Product Categories

Wuxi Hengtai Cable Machinery Manufacture Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : Wuxi

Brand Name : HNT

Certification : ISO9001:2008, CE, High-tech enterprise

MOQ : 1 set

Price : negotiable

Packaging Details : according to customer's requirements

Delivery Time : 30-120 days

Payment Terms : T/T, L/C

Payoff Tension : Pneumatic control

Application Bobbin : Φ1600～Φ3200mm

Application Wire Dia. : Max.15mm

Max. Loading : 18T

After-sales service provided : Engineers available to service machinery overseas

Warranty : 1 year

Contact Now

PO32 Motorized payoff:

It is mainly used for the pay-off of plastic extrusion line, high-frequency welding machines and other cable equipment.
Wire reel diameter range: (㎜) Φ1600～Φ3200
Applicable reel width: (㎜) 1000～2300
Applicable cable diameter: (㎜) Φ10～150
Moving Speed: (m/min) 2
Applicable cable torque: (NM) 500～4000
Electric control mode: PLC+Danfoss inverter
Payoff Tension: Pneumatic control
Traverse motor: 1.1kw AC variable frequency motor
Installed capacity: (kw) 20
Maximum load: 18t

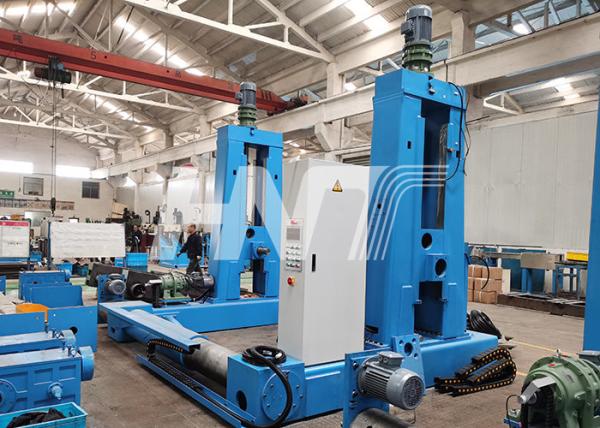

PO32 Motorized Payoff Machine For VCV Production Line
